I-Thermal Power Plant Steel Frame

I-Thermal Power Plant Steel Frame yinkqubo yesakhiwo sentsimbi ethwele imithwalo eyenzelwe ngokukodwa izityalo zamandla ashushu, ezisetyenziselwa ukuxhasa izixhobo ezinzima ezifana neebhoyili kunye neeseti ze-turbo-generator, kunye nokusebenza njengesakhelo sezakhiwo eziphambili. I-EIHE Steel Structure (EHSS) ngumvelisi wesakhiwo sentsimbi kunye nobuchwepheshe obuphambili. Sinamava kwiiprojekthi zamandla enyukliya, ahlangabezana nemigangatho engqongqo yemizi-mveliso yamandla ashushu.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Thermal Power Plant Steel Frame ibandakanya ubukhulu becala intsimbi yecandelo kunye neepleyiti zentsimbi, ezisebenza njengeyona nto iphathwayo yobunjineli boluntu kunye nofakelo lwezixhobo kumaziko ombane ashushu. Iimveliso eziveliswe ngumzi-mveliso wethu zibonakalisa izibonelelo ezininzi ezinje ngokuqina okuphezulu, ubunzima bomzimba obulula, inyikima egqwesileyo kunye nokumelana nomoya, kunye nobungqina bokudubula kunye nepropathi ekwazi ukumelana nomhlwa.

Iimveliso zethu zesakhiwo sensimbi zisetyenziswa ikakhulu kwiinkqubo ezimbini eziphambili.

▷ Isakhiwo sensimbi ye-boiler: isakhiwo sensimbi esizimeleyo esisetyenziselwa ukumisa kunye nokuxhasa izixhobo eziphambili.

▷ Isakhiwo sensimbi yendlu yamandla engundoqo: isakhiwo esisisiseko sokwakha iiyunithi ze-turbo-generator, amagumbi okulawula kunye nezinye izixhobo.

Thermal Power Plant Steel Frame

Izityalo zamandla ezishushu zineemfuno ezizodwa ngokubhekiselele kwizinto eziphathekayo, ukuyila kunye nokukhusela. Ukuhlangabezana nemigangatho ephezulu yezi nkqubo zimbini, i-EHSS ikhetha insimbi ephezulu kwaye ifake ukubaluleka okukhulu kwi-fireproof kunye ne-anti-corrosion design ukwakha i-Thermal Power Plant Steel Frame yakho.

Ukugquma komlilo	Ukutyeba kokutyabeka	Umda wokuChasa uMlilo	Iimbonakalo	Iimeko zeSicelo
Intumescent	<5mm	1.5-2.0 iiyure	Umphezulu ogudileyo ngokulinganayo kunye nefuthe elithile lokuhombisa	Ukusetyenziswa kwangaphakathi okanye iiprojekthi ezineemfuno zobuhle
Non-intumescent	> 10mm	2.0-3.0 iiyure	Umphezulu orhabaxa nohlala ixesha elide	Ukusetyenziswa kwangaphandle okanye iindawo ezinomngcipheko omkhulu womlilo

I-I-Anticorrosive Coating	Ukutyeba kokutyabeka	Umsebenzi ongundoqo	Umaleko
I-Epoxy Zinc-rich Primer	70-80μm	Ukukhuselwa kweCathodic	Umaleko wokuqala
I-Epoxy Micaceous Iron Oxide Coat ePhakathi	80-125μm	Ukugquma umqobo	Umaleko ophakathi
Idyasi ePhezulu yePolyurethane / Idyasi yeFluorocarbon ePhezulu / ipeyinti yerabha eneklorini	60-80μm	Ukumelana nemozulu, ukuxhathisa imidiya kunye nokuhlobisa	Umaleko ophezulu

Iifreyimu zentsimbi ye-Thermal Power Plant zifuna izisombululo ezahlukeneyo zokukhusela kwiimeko ezahlukeneyo, ngenxa yeendawo ezahlukeneyo ezinomngcipheko ophezulu okhoyo kwizityalo zamandla ezishushu.

Imeko yesicelo	Iimbonakalo	Inkqubo yokwaleka	Ukutyeba ngokupheleleyo
Isakhiwo soMbane oPhambili sangaphakathi	C3 Okusingqongileyo	I-Epoxy Zinc-rich Primer (60μm) + I-Epoxy Micaceous Iron Oxide Idyasi ePhakathi (80μm) + iCoat ePhezulu yePolyurethane (80μm)	≥220μm
Isakhelo seSimbi seBoiler sangaphandle	C5-M Okusingqongileyo	I-Epoxy Zinc-rich-rich Primer (80μm) + I-Epoxy Micaceous Iron Oxide Idyasi ePhakathi (120μm) + Idyasi ePhezulu yeFluorocarbon (100μm) + iFilimu eNtyibiliyo yoMtyalo ongaFirekiyo	≥300μm
Inkqubo yokuphatha amalahle	Ukufuma Okuphezulu / Ukukrala	I-Epoxy Zinc-rich-rich Primer (75μm) + High-Build Epoxy Intermediate Coat (150μm) + I-Abrasion-Resistant Polyurethane Top Coat (100μm)	≥325μm
Umbhobho weFlue / uMmandla woXhobo	Iasidi eyomeleleyo	Ubushushu obuphezulu obuxhathisa iPhenolic Epoxy Primer (100μm) + iPhenolic Epoxy Flake Coating (200μm)	≥300μm

Inkqubo Flow

Iimveliso zethu ze-Thermal Power Plant Steel Frame zihanjiswa ngeenkqubo ezi-5 eziphambili:

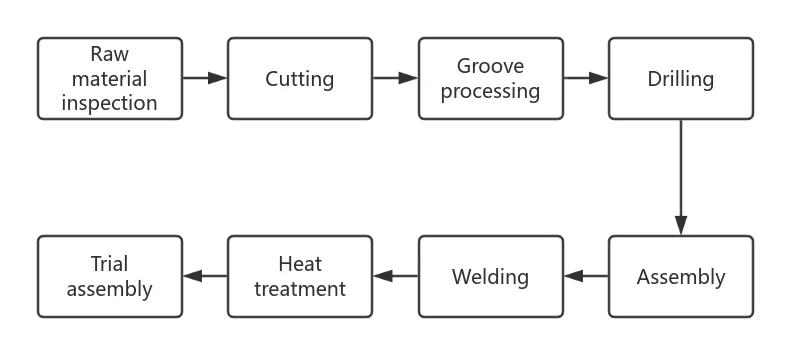

1. Ukwenziwa

Fabrication

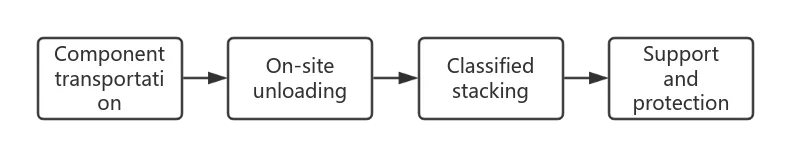

2. Ezothutho & noGcino

Transportation & Storage

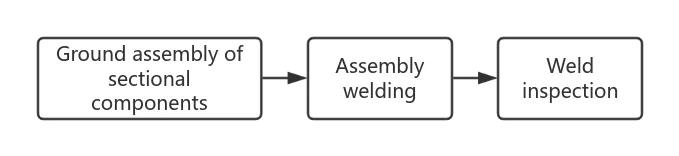

3. INdibano ekwisiza

On-site Assembly

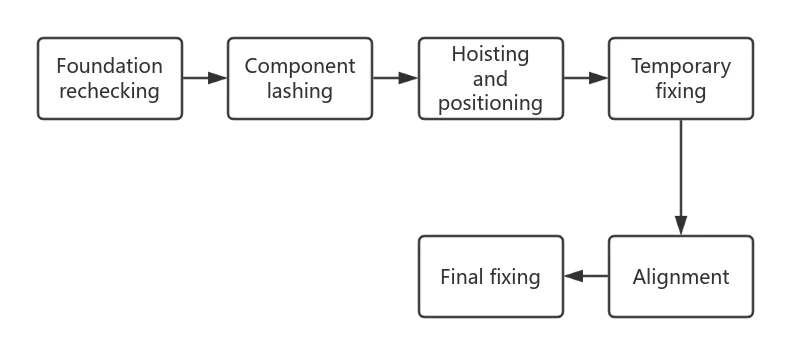

4. Ukuxhoma kunye noFakelo

Hoisting & Installation

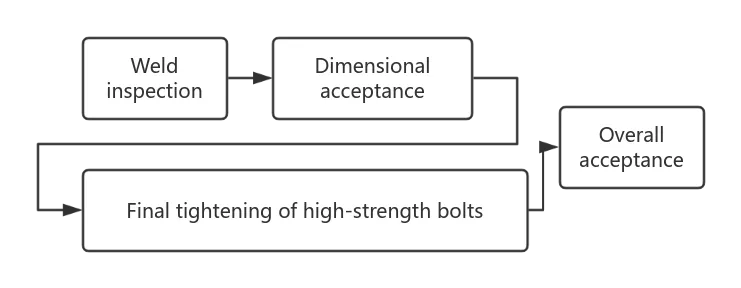

5. Ukwamkelwa koMgangatho

Quality Acceptance

Ekugqityweni kwezi nkqubo, i-Thermal Power Plant Steel Frame yakho iya kuba ilungele inkonzo malunga neenyanga ezimbini ukuya kwezintathu.
