IsiXhosa

Ulwakhiwo lweNsimbi yeZityalo zeMichiza

I-Steel Structure Chemical Plant yindawo yokwakha esemngciphekweni omkhulu ekufuneka ihambelane nemigangatho yoyilo engqongqo kunye neemfuno zokhuseleko. Njengeshishini eliphambili lomqolo kulo lonke ikhonkco loshishino lolwakhiwo lwePhondo laseShandong, i-EIHE Steel Structure (EHSS) ilawula ngokungqongqo ukhuseleko lwemveliso kunye nemigangatho, kwaye ngumenzi wakho othembekileyo wobuchwephesha obuphezulu.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Steel Structure Chemical Plant sisakhiwo esikhethekileyo ekufuneka sihambelane neemfuno ezikhethekileyo zokhuseleko ezifana nokumelana nokugqwala, ukukhuselwa kokuqhuma, ukukhuselwa komlilo kunye nokuthintela ukubola. Xa usenza iimveliso ezinjalo, umzi-mveliso wethu ulawula ngokungqongqo umgangatho wemveliso ukusuka ekukhethweni kwezinto eziphathekayo ukuya kwimveliso kunye nofakelo, ukuqinisekisa ukuthunyelwa ngokukhawuleza kunye nomgangatho okhuselekileyo weemveliso.

● Ukukhetha izinto ezingundoqo

Samkela intsimbi ephezulu edityaniswe nobuchwephesha bokunqanda ukubola ukwandisa ubomi benkonzo yeemveliso zethu.

✔ Izinto ezisisiseko:

- Kwiindawo eziqhelekileyo: i-Q235B okanye i-Q355B i-carbon structural steel ikhethiweyo.

- Kwindawo ezonakalisa kakhulu: iintsimbi zemozulu ezinje nge-Q355NH ziyakhethwa.

- Kumalungu anxibelelana ngokuthe ngqo nemidiya eyonakalisayo: i-316L okanye i-304 insimbi engenasici isetyenziswa ngokuqhelekileyo.

✔ Uyilo lweCandelo:

- Amacandelo avaliweyo okanye amacandelo e-solid-web abekwe phambili, kunye nolawulo olungqongqo phezu kobuncinci bodonga lodonga.

- Iziqendu zetsimbi ezinobumba ezibandayo zinqatshelwe ngokungqongqo kwizinto eziphambili zokuthwala umthwalo.

✔ I-Anti-corrosion Coating:

- Inkqubo yengubo ezintathu isetyenziswe: i-epoxy zinc-rich primer, i-epoxy micaceous iron oxide intermediate coat, kunye ne-polyurethane okanye i-fluorocarbon topcoat.

- Ubunzima befilimu eyomileyo iyonke abuyi kuba ngaphantsi kwe-200 μm.

● Inkqubo yeMveliso

Ulwakhiwo lweSteel Izityalo zeMichiza zisebenzisa iinkqubo ezingqongqo zokuvelisa ukuqinisekisa umgangatho wamacandelo anikezelweyo.

Uphawu	EHSS
Inkqubo Link	Inqaku eliphambili	IParameter engundoqo
Ukumisela kunye nokuMakisha	Isibonelelo se-Welding shrinkage sigciniwe	Ukunciphisa ixesha elide: 0.6-1.0 mm / m; Ukuncipha okunqamlezileyo: 1.0-1.5 mm nge-weld pass
Ukusika kunye nokuGqiba	Sika umgangatho womphezulu	I-Flatness ≤ 0.05t (t = ubukhulu beplate) kunye ≤ 2.0 mm; Uburhabaxa ≤ 50 μm
Ukulungiselela uMda	Bevel dimension ukuchaneka	I-engile ye-Bevel: 30 ° -35 °, ubuso beengcambu: 1.0-2.0 mm, i-gap yengcambu: 2-3 mm
Ukugrumba	Ukuchaneka komngxuma webholithi ephezulu	Ukunyamezela kwedayimitha yomngxuma: +0.3 ~ +0.5 mm; ukunyamezela isithuba somngxuma: ± 1.0 mm
INdibano ye-H-beam	I-flange plate perpendicularity	Ukuthambekela ≤ 2.0 mm (ubude becandelo ≤ 500 mm) okanye ≤ 3.0 mm (> 500 mm)

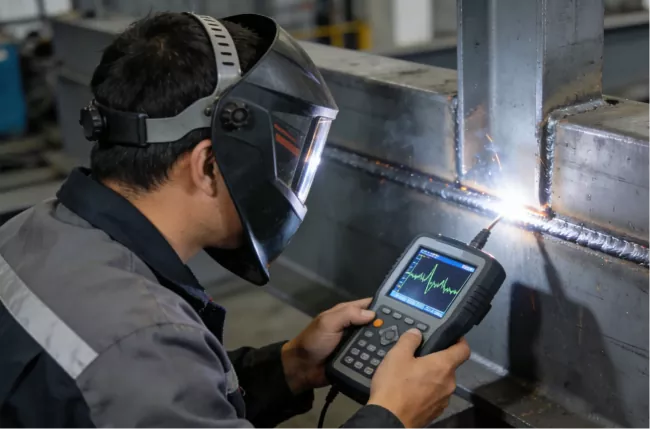

Ukuwelda	Iklasi yomgangatho we-weld	Udidi lwe-1 welds: 100% uvavanyo lwe-ultrasonic; Udidi lwe-2 welds: ukuhlolwa kweesampuli ≥ 20%
Weld ubungakanani bomlenze	Imfuneko yeweld eqhubekayo	Ubume be-corrosion kakhulu: ubukhulu bomlenze we-weld ≥ 8 mm
Indibano yangaphambili	Umngxuma wokupasa izinga	I-100% yezinga lokupasa kunye nezikhonkwane zokuvavanya
Ukudutyulwa kweAbrasive	Ukucoceka kunye noburhabaxa	I-Primer ≥ 60 μm, idyasi ePhakathi ≥ 80 μm, i-Topcoat ≥ 60 μm, Ubukhulu befilimu eyomileyo iyonke ≥ 200 μm

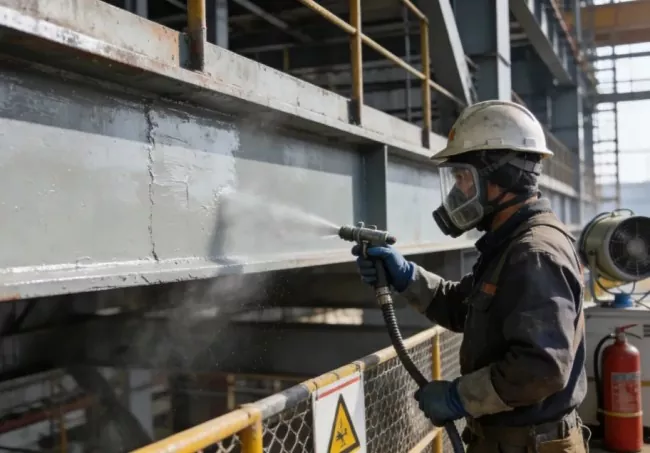

Isicelo sokugquma	Ulawulo lokutyeba koMaleko	I-Primer ≥ 60 μm, Idyasi ePhakathi ≥ 80 μm, i-Topcoat ≥ 60 μm, Ubuninzi beFilimu ≥ 200 μm.
Ukuhlolwa kokugquma	Uvavanyo lweSampuli yoKutyeba kweFilimu eyomileyo	I-85% yamanqaku okulinganisa ≥ ixabiso loyilo, ubuncinci bokulinganisa indawo ≥ 85% yexabiso loyilo
